Dive Equipment - OMS 300 bar Rotating Cross Bar Manifold
Product: Manufacturer:
OMS 300 bar Rotating Cross Bar Manifold OMS
Dive Shop: Purchase Date: Price:
The Scuba Doctor, Rye Mon, 09-Jun-2008 $360.00
Serial Number: Warranty: Active:
- 1 year Still in service Still in service
Last Service Date: Next Service Date: Next O2 Service: Weight:
- - - -
Photo:
Highslide JS

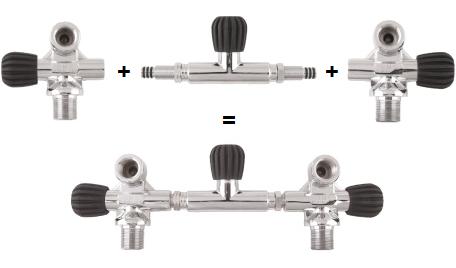

OMS 300 bar Rotating Cross Bar Manifold

Comments:
The OMS 300 bar Rotating Cross Bar Isolation Manifold (OMS V-300RC) with 3 O-Rings per side, is rugged and constructed from aircraft grade brass. This manifold enables you to combine modular valves into a dual-outlet manifold configuration to dive with two cylinders as a single larger gas supply. The movable isolator helps conserve breathing gas during a burst disk release or cylinder neck O-ring failure.

Description: 200 bar Rotating Cross Bar Isolation Manifold
Valve Thread: USA 3/4", 14 NPSM
First Stage Accommodation: DIN
Burst Disk Service Pressure: 3500 psi
Burst Disk Rupture Pressure: 5800 psi
Oxygen Compatible Materials: YES
Max Valve Press Rating (DIN Style Only): 4500 psi
Manifold Centerline Dist: 209 mm - 222 mm
Cylinder OD size: 6.9" to 8"

OMS manifold valve knobs are manufactured from medium durometer plastic to prevent wedging and accidental turning should the manifold come in contact with the overhead environment.
